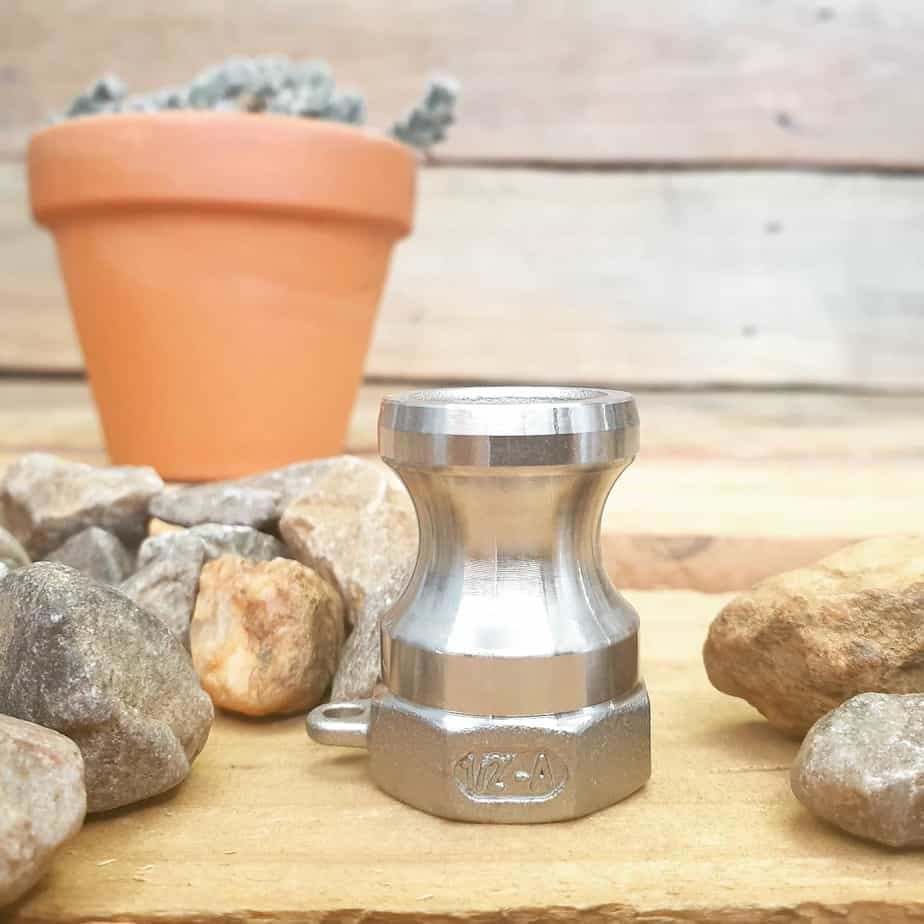

Camlock Fitting A
Stainless Steel Camlock Coupling Operating Pressure
Size
Working Pressure
| 1/2″ | 150 psi |
| 3/4″ to 2″ | 250 psi |
| 2 1/2″ | 225 psi |
| 3″ | 200 psi |
| 4″ 5″ & 6″ | 100 psi |
Stainless steel Cam & Groove Coupling Type A Adapter
Size (inch)
A
Overall length (inch)
B
Adapter length (inch)
C
Distance across flats (inch)
| 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | |
| 1 5/8 | 1 1/2 | 1 31/32 | 2 7/32 | 2 3/16 | 2 19/32 | 2 11/16 | 2 29/32 | 3 11/64 | 3 1/4 | 3 1/4 | |
| 1 1/16 | 1 | 1 5/16 | 1 9/16 | 1 5/8 | 1 7/8 | 1 15/16 | 2 | 1 1/16 | 2 5/16 | 2 1/4 | |
| 1 | 1 5/16 | 1 1/2 | 1 15/16 | 2 9/32 | 2 11/16 | 3 1/4 | 3 1/4 | 5 | 6 17/32 | 6 1/4 |
